m5stack Fire v2.6 Living Room Clock and environment sensor

m5stack Fire v2.6 Living Room Clock and environment sensor

I've been at this for a while and it's a fun project. It essentially shows current Time (sync'd via NTP), weather conditions (courtesy of OpenWeatherAPI - where i pre-downloaded all the logos to flash and simply identify weather status with the corresponding icon), and gave use to the RGB LEDs to make it breathe (although it's a bit asmatic).

First real dive onto Micropython.

Goals/implemented

Using an M5stack Fire v2.6

  • NTP syncd table clock
  • Current weather (temp/wind speed)
  • Forecast
    • Icon
    • temp/wind/textual description
    • breathing LED - color according to forecast conditions
  • w/ protoboard addon
    • CO2 sensor (MH-Z19b)
    • BH1750 lux sensor
    • BME280 temperature/humidity/pressure

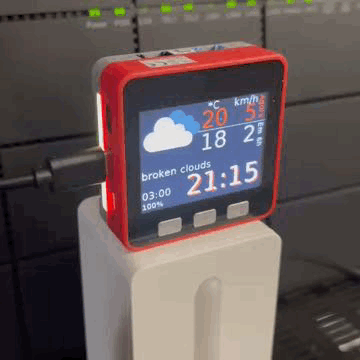

Breathing gif

TODO

which can be summarized as
import math
val = (math.exp(math.sin(time.ticks_ms()/2000.0 * math.pi)) - 0.368) * 108.0;

Code is available on my GitHub (please excuse every single line of "code" - mind the quotes)

https://github.com/0raculo/home_environment_sensor
